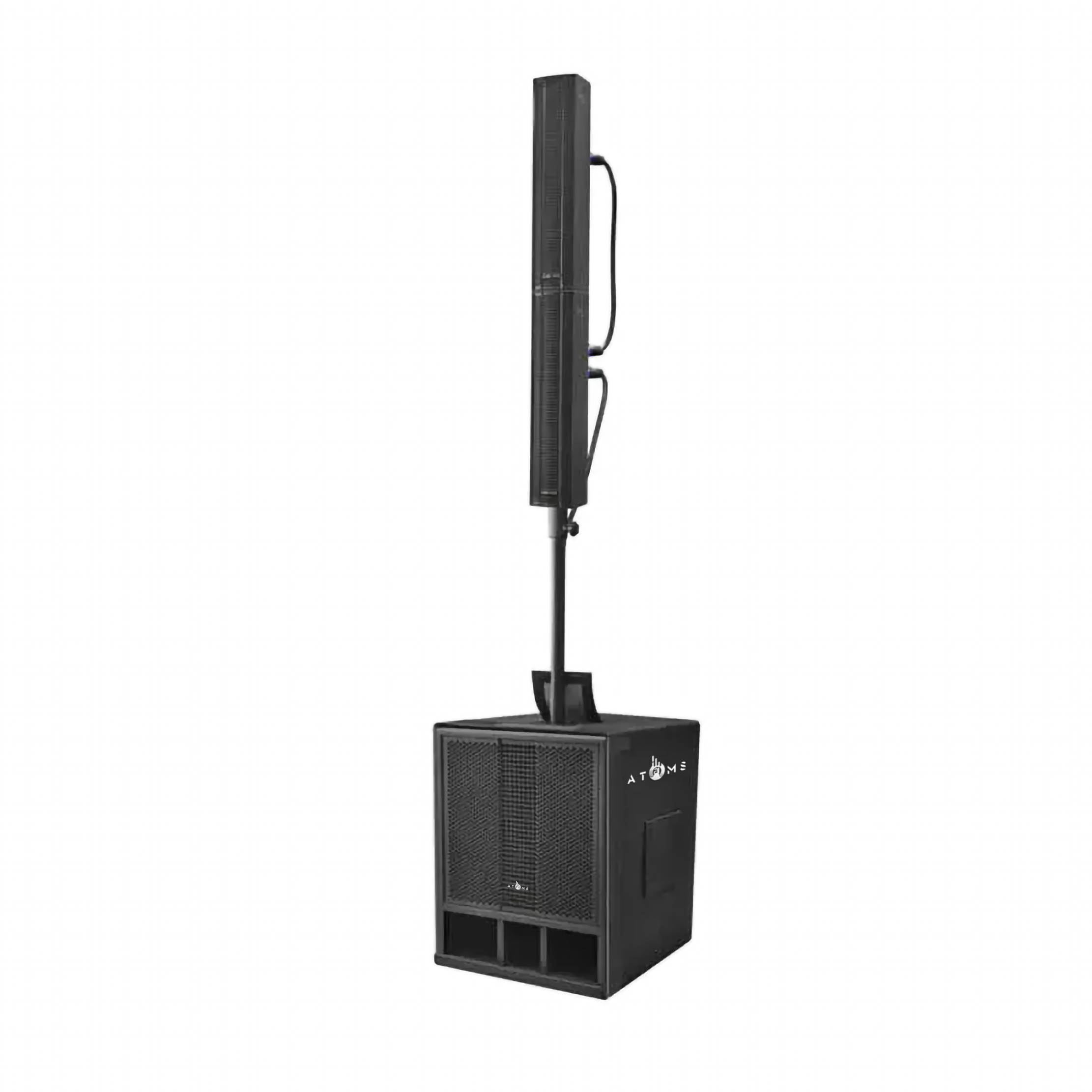

Name: Atoms SC Max Column Speaker & Subwoofer System - SC4.5 Max + SC15SUB Max
Brand: ATOMS
SKU: AT-SPK-SC45
Price: 175900.0 INR
Availability: InStock

Atoms SC Series Column Speaker & Subwoofer System - SC4.5+SC15SUB

Non-returnable

₹175,900.00

Choose Quantity :

View Details

Specifications

Drivers

SC4.5 MAX : 4x4.5" full-range neodymium drivers | SC15SUB MAX : 1x15" (380mm) bass
Frequency Response (-3dB)

SC4.5 MAX : 110Hz~17kHz | SC15SUB MAX : 35Hz~250Hz
Dispersion (-6dB)

SC4.5 MAX : Hor: 120° Vert: 40° | SC15SUB MAX : -
Max SPL

SC4.5 MAX : 122dB (continuous)/128dB (peak) | SC15SUB MAX : 126dB (continuous)/132dB (peak)
Rated Power (AES)

SC4.5 MAX : 240W | SC15SUB MAX : 600W
PEAK Power

SC4.5 MAX : 960W | SC15SUB MAX : 2400W
Amplifier Circuitry

SC4.5 MAX : - | SC15SUB MAX : Class D
DSP Sampling Rate

SC4.5 MAX : - | SC15SUB MAX : 96kHz/24-bit
DSP Input Channels

SC4.5 MAX : - | SC15SUB MAX : 2 in, 2 out
Output Power

SC4.5 MAX : - | SC15SUB MAX : 40Ω/2x800W+4Ω/1600W
Impedance

SC4.5 MAX : 8Ω | SC15SUB MAX : 8Ω
THD

SC4.5 MAX : - | SC15SUB MAX : ≤0.5%
Input/Output Connectors

SC4.5 MAX : Speak ON | SC15SUB MAX : XLR-F/M
Amplifier Output Connectors

SC4.5 MAX : - | SC15SUB MAX : 1 four-core professional speaker socket, output +1, -1
AC Power Operating Range

SC4.5 MAX : - | SC15SUB MAX : AC90V–270V PFC, 50Hz/60Hz
Dimensions (HxWxD)

SC4.5 MAX : 534 x 135 x 153 mm | SC15SUB MAX : 610 x 460 x 540 mm
Net Weight

SC4.5 MAX : 7 kg | SC15SUB MAX : 40.2 kg
